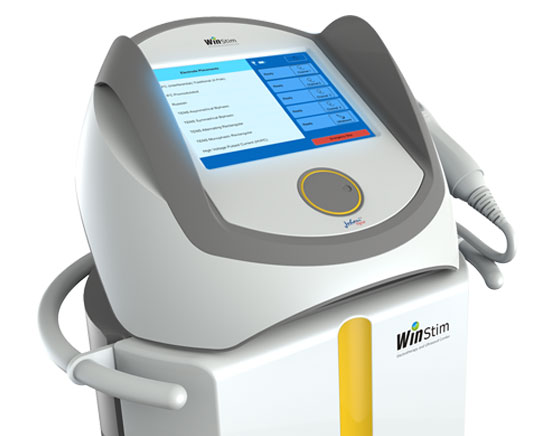

Winstim combination therapy
Winstim is 4/2 channel electro-therapy and ultrasound combination device which can provide 4 pole and 2 pole interferential treatment as well as a wide range of other electrical stimulation waveforms. Therapeutic voltage and current waveforms may be applied to a wide range of conditions with successful outcomes. These include acute and subacute traumatic and inflammatory conditions, chronic rheumatoid and arthritic conditions and for pain relief.
CombotherapyElectrotherapy + Ultrasound
Various Electrotherapy Waveforms in One Device
Interferential, Monophasic, Träbert, Russian, Diadynamic, Surged, Tens, High Voltage, Ultrasound, Galvanic, Microcurrent, Combotherapy.
Features
- 4 / 2 channel electrotherapy, multiple modalities in a single unit including combination of ultrasound and electrotherapy.
- A comprehensive reference library providing information on therapy, treatments and electrode placement.
- SD curve for interdependence between stimulus strength and the time required in activating the muscles.
- Treat and monitor multiple patients at the same time.
- Full-colour, 8” LCD touch screen displays for sharp & vivid detail.

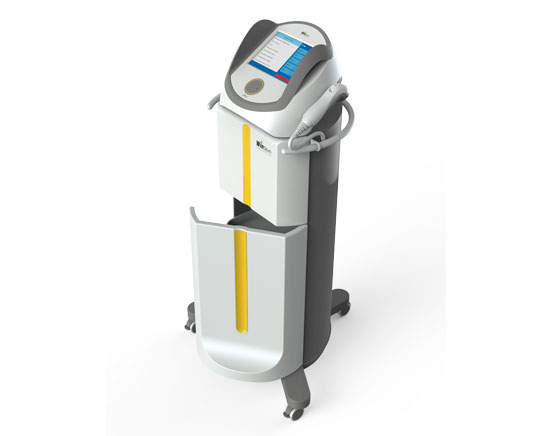

- Tabletop device and can be mounted on optional mobility cart.
- Different treatment parameters can be saved for different patients.

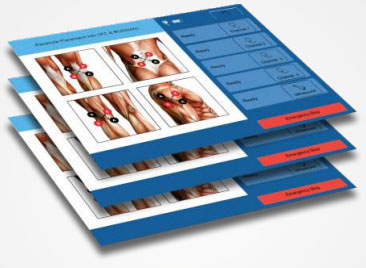

16 Preset treatment protocols library and electrode placement reference guide
Technical Specification
- Output Channels 4 / 2
- Carrier Frequency 2,000 – 10,000 Hz
- Beat Frequency 0 – 400 Hz
- Max. Intensity 0 – 130 mA
- Phase Duration 20 – 1000 μS
- Treatment Time 1 – 60 Minutes
- Ultrasound Frequency 1 MHz & 3 MHz
- Duty Cycle Continous, 10%, 20% & 50%
- Duty Cycle Frequency 16Hz, 48Hz and 100Hz
- Intensity for 1 MHz 0-2.5/0-3 W/cm2
- Intensity for 3 MHz 0-2/0-3 W/cm2
