Winlase Laser Therapy

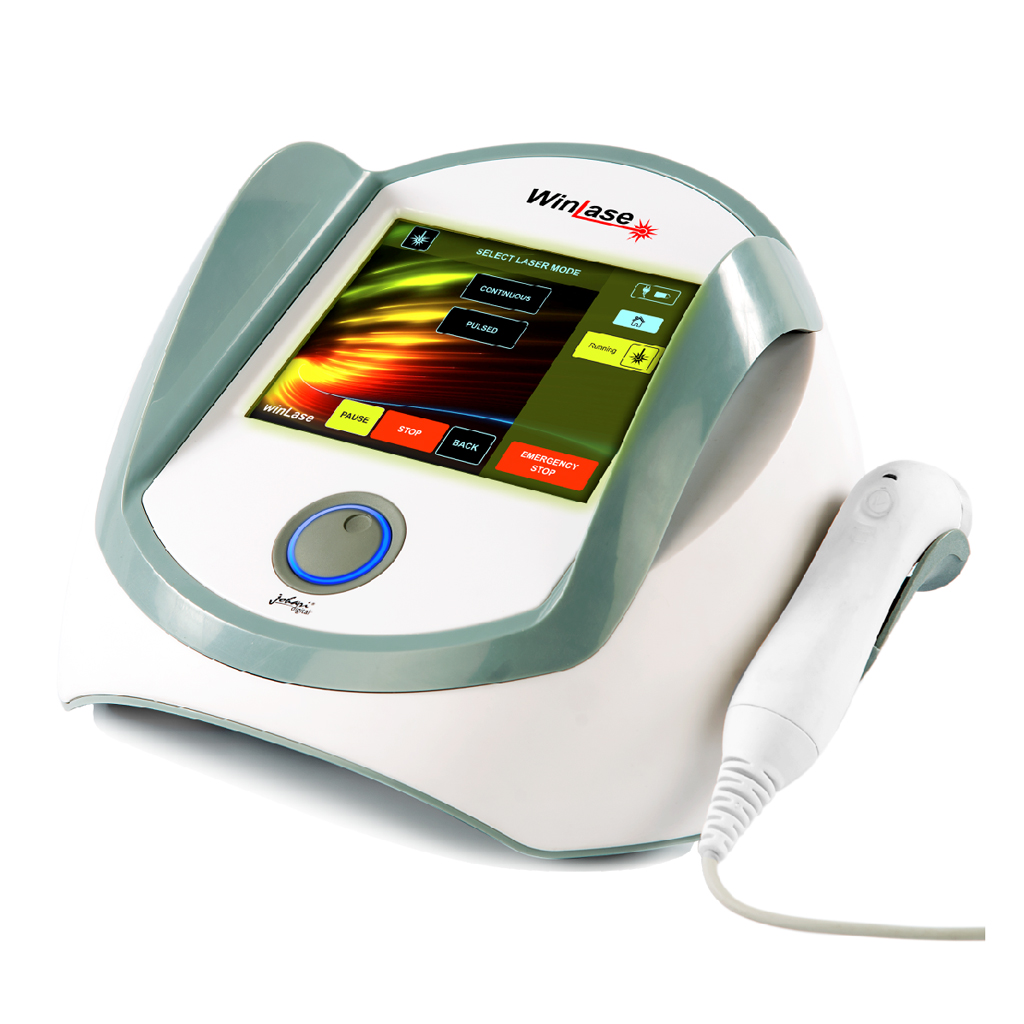

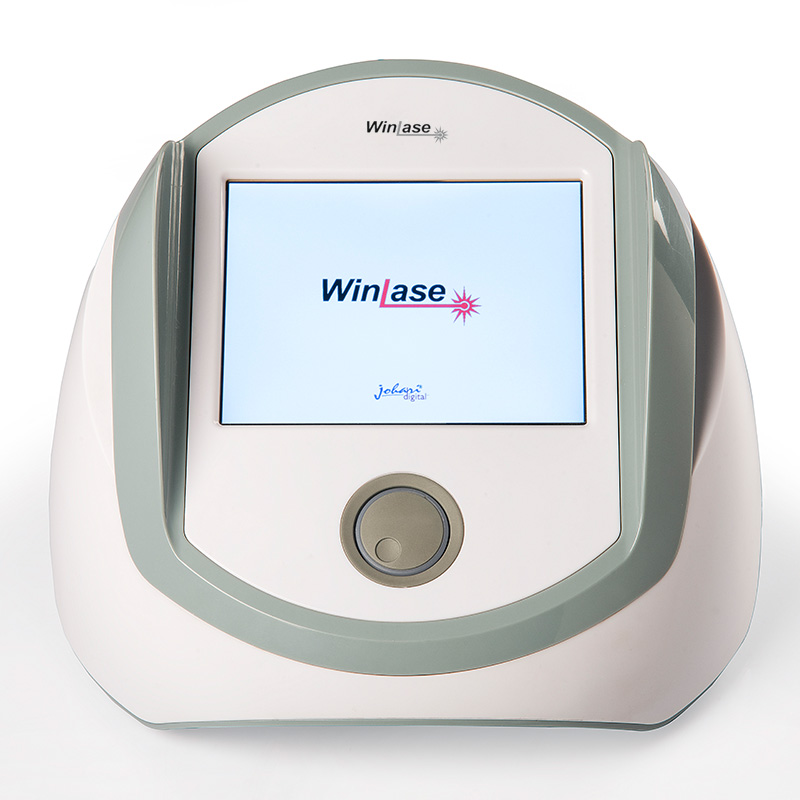

Winlase is a class 3b Laser Device. It is portable, touch screen,and equipped with therapy protocols enabling selection of useful clinical indication for easy and effective application. The device comes with 200mW Single Diode Applicator and 500mW Cluster Applicator. A revolutionary therapeutic laser technology solution for Orthopaedic Physiotherapy.
Key Application
- Arthritis Pain
- Carpel Tunnel Syndrome
- Tendonitis
- Knee Pain
- Neck Pain
- Fibromyalgia
- Back Pain
Technical Sepcification
- Power Supply 24V DC (3.75A)
- Pulse Frequency 10 – 5000Hz (Pulsed)
- Max. Energy Delivery 100 Joules
Features
- Auto detection of attached applicator
- Auto-adjustment of parameters based on attached applicator
- Treatment modes: 1. Continues, 2. Pulsed, 3. Sweep;
- 8 Pre defined set of protocols.
- User can save 50 treatments.
- Application upgrade in the field through the service mode
- 8” large touch screen display
- Interactive GUI and rotating knob for easy control and landscape orientation ofLCD.
- 45 Min. battery backup
- Battery automatically and continually charges

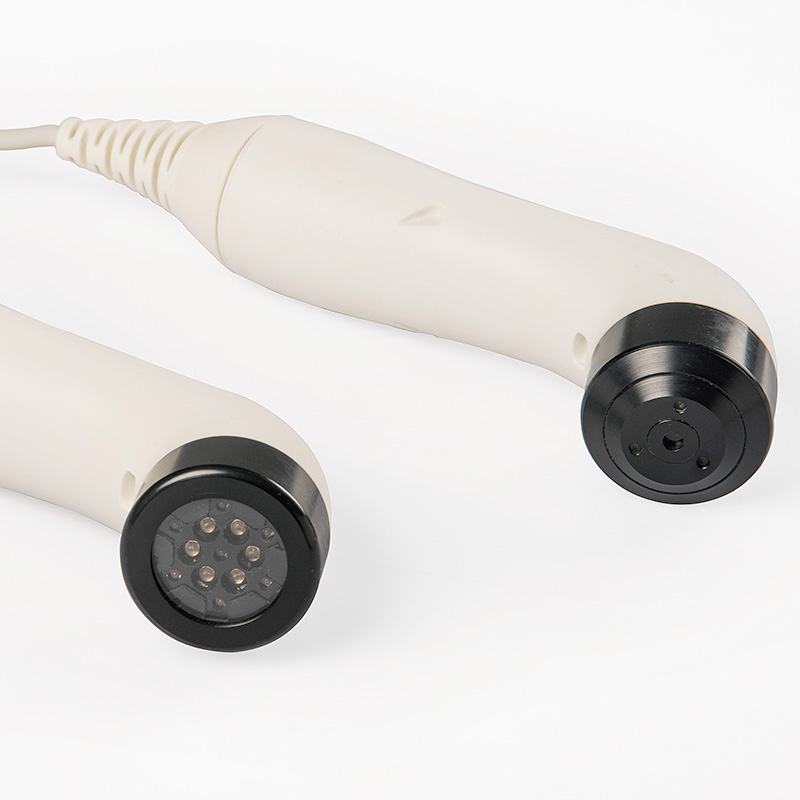

Cluster Laser Diode Applicator
- Laser Diode Wavelength – 850nm
- No. of Laser Diodes – 5
- Laser Diode Power – 500mW (100mW x 5)
- Other Diode – 4 x Red LED (660nm)
Single Laser Diode Applicator
- Laser Diode – Wavelength 850nm
- Laser Diode – Power 200mW
- Other Diode – 3 x Blue LED
- LED Wavelength – 465nm
